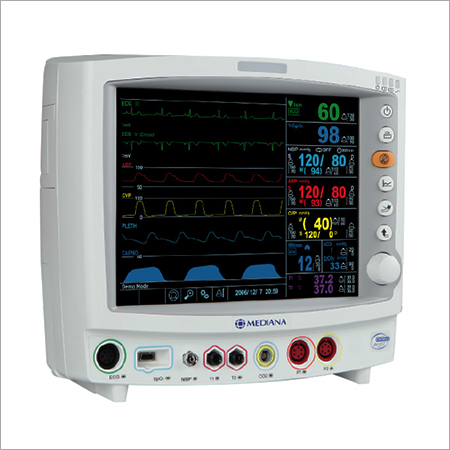

YM6000 Patient Monitor

YM6000 Patient Monitor
YM6000 Patient Monitor
Product Code : 22
Product Description

YM6000 Patient Monitor

Progressive YM6000 Multi-Parameter
Patient Monitor provides full parameters.

THE YM6000
PATIENT MONITOR

Available parameters include 3 or 5 lead ECG, Respiration. NIBP, SpO2. 2 temperatures, included battery and optional 2lBP. EtCO2. and built-in printer.
High quality 12.1 inch color TFT LCD screen enables you to monitor 6 traces with 10 numerics vital sign clearly even under the most difficult lighting conditions.
6 Color coded keys and a trim knob admits clinicians to quickly access monitoring function controls.
The optimized 2 packs of Ni-MH rechargeable batteries. a wheeled mobile cart and an integrated top handle ensure continuous monitoring under any transport circumstances.
Connectivity to the central monitoring system enables users to receive alarm signal automatically when the patient's condition turns critical. Also the stored event or real time vital sign can be re-called to review and print with any PC printer through the network.

YM9000 CENTRAL MONITORING SYSTEM

Multiple monitors can be connected to the central monitoring system to raise an alarm signal Automatically when the patients turn into critical condition. Also the stored event or real time. Vital sign can be re-called to be displayed or printed with to three channel wave-forms.

The YM9000 central monitoring system provides the centralized display of real-time vita signs and the values of each parameter. The patient data can be saved to the extent that Hard-Disk capacity can restore which can normally 7days a week without concern about memory capacity.


YM6000 PARAMETERS AND ORDERING INFORMATION (Lan Card : Optional)

1. Unit Code# PAA21-0
Standard
Parameters : ECG. Respiration. NIBP. SpOz. Temperature

2. Unit Code# PAA21-PO
Standard with Printer
Parameters : ECG. Respiration. NIBP. SpOz. Temperature

3. Unit Code# PAA21-2
Standard with USB interface
Parameters : ECG. Respiration. NIBP. SpOz. Temperature

4. Unit code# PAA21-OB
Standard with 2lBP
Parameters : ECG. Respiration. NIBP. SpOz. Temperature. 2lBP

5. Unit Code# PAA21-PUB
Standard with 2lBP and printer
Parameters : ECG. Respiration. NIBP. Spo2. Temperature. 2lBP

6. Unit Code# PAA21-OE
Standard with EtCo2
Parameters : ECG. Respiration. NIBP. SpOz. Temperature. EtCo2

7. Unit Code# PAA21-POE
Standard with EtCOz and printer
Parameters : ECG. Respiration. NIBP. SpOz. Temperature. EtCo2

8. Unit Code# PAA21-08E
Standard with 2lBP and EtCo2
Parameters : ECG. Respiration. NIBP. SpOz. Temperature. 2lBP. EtCo2

9. Unit Code# PAA21-POBE
Standard with 2lBP. EtCo2 and Printer
Parameters : ECG, Respiration, NIBP. SpOz, Temperature, 2lBP. EtCOz

The YM6000 is a sophisticated monitor using the best technologies.

The dynamic linear deflation NIBP module guarantees greater patient comfort, shorter measurement time and improved accuracy for all adult. pediatric and neonate patients.

The new SpO2 module with sensors lets you take full advantages of the ongoing advances in pulse oximetry.

Up to 24hrs tabular and graphical trends show all parameters to support clinician's decisions whenever necessary.

The central monitoring system displays real time and dual waveforms [Standard model] or 4 analysis waveforms to enable a single clinician to care for 16 to 32
patients effectively.

YM6000's Various Function.....

  • ETCO2: Side Stream
  • C-Lock: When C-Lock is turned on in the Spo2 menu, C-Lock automatically becomes operational any time a valid ECG signal is detected by the monitor. It is not necessary to turn C-Lock off if an ECG signal is not available; the monitor handles this function automatically. If the ECG signal is noisy. or of poor quality. Spo2 performance may be improved by turning C-Lock off.
  • Trends: Stores 1,500 trend data :- Tabular Trend, Graphical Trend
  • Big Number display: Big number display mode
  • Two batteries: Battery operation for more than 2 hours with 2 NI-MH batteries
  • Built-in thermal recorder prints 2-ch waveform
  • Wall mount
  • Rolling stand
  • USB for Software upgrade
  • LAN connection for central monitoring system
